Two HaloClips are held in place, together behind the outer rim of the recessed light unit.
The springs holding the light unit up keep the "located" HaloClip locked in place.
THEY DO NOT LOCK TOGETHER WHEN THEY 'CLICK'. They may be glued if needed.
HaloClips can be painted if required.
Made in the UK by HaloClip Ltd
UK Patent 1906709.9.
USA Patent US-11598510-B2
1. HaloClip Product Information
This section details the physical dimensions and installation instructions for the "HaloClip" product.

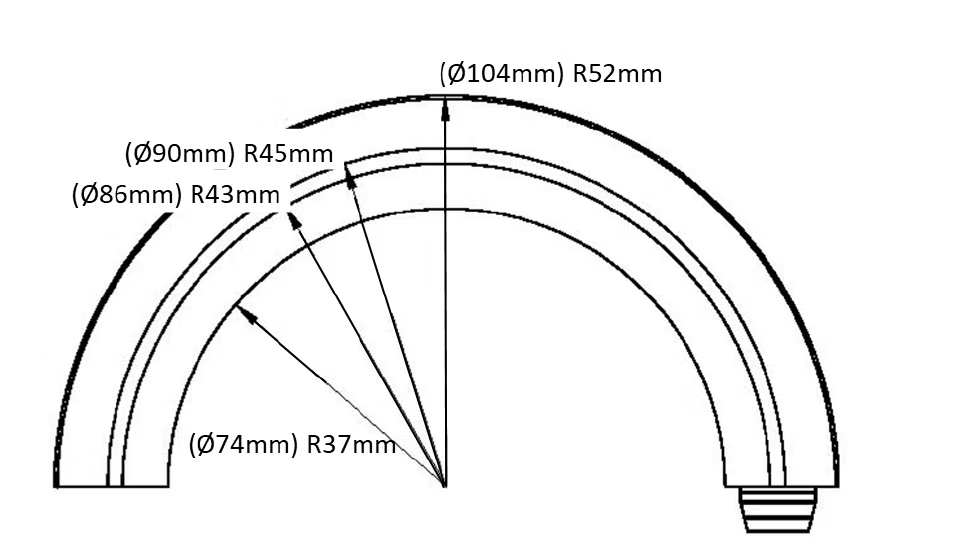

Dimensions
| Diameter (ø) | Radius (R) |
|
104mm |
52mm |
|
90mm |
45mm |
|
86mm |
43mm |
|
74mm |
37mm |
Installation & Finishing
-
Assembly: Two HaloClips are held in place together behind the outer rim of the recessed light unit. A tab on one HaloClip locates under the opposite HaloClip.
-
Securing: The springs that hold the light unit in place also serve to keep the "located" HaloClip locked.
-
Note: The HaloClips do not lock when they 'click' together. They can be glued if additional security is required.
-
Finishing: HaloClips can be painted if desired.
2. Material Specifications
This section outlines the general properties and applications of the material used.
-
Base Polymer: Polycarbonate
-
Special Features: Impact modified, UV stabilised, contains recycled material.
-
Market Segment: Electrical and Electronic, Lighting, various.
-
Application Area: Lamps, light blocking components, various.
-
Typical Applications: Light guides, lamps, sockets, various.
3. Detailed Material Properties
This section provides a detailed breakdown of the material's mechanical, thermal, rheological, physical, and flammability properties based on standard testing norms.
Mechanical Properties
| Property | Value | Dimension | Test Norm |
|
Tensile modulus |
2500 |
MPa |
ISO 527 |
|
Tensile stress at yield |
60 |
MPa |
ISO 527 |
|
Tensile elongation at yield |
6 |
% |
ISO 527 |
|
Charpy impact strength 1eU |
no break |
|
ISO 179/1eU |
|
Charpy notched impact 1eA |
30 |
kJ/m² |
ISO 179/1eA |
Thermal Properties
| Property | Value | Dimension | Test Norm |
|
Vicat B50 |
140 |
°C |
ISO 306 |
Rheological Properties
| Property | Value | Dimension | Test Norm |
|
MVR |
16 |
cm³/10min |
ISO 1133 |
|
MVR temperature |
300 |
°C |
- |
|
MVR load |
1.2 |
kg |
- |
|
Shrinkage (24h) |
≥0.65 |
% |
ISO 294-4 |
|
Shrinkage - lengthwise (24h) |
≥0.7 |
% |
ISO 294-4 |
|
Shrinkage - lateral (24h) |
≥0.65 |
% |
ISO 294-4 |
Physical Properties
| Property | Value | Dimension | Test Norm |
|
Density |
1290 |
kg/m³ |
ISO 1183 |
Flammability
| Property | Value | Dimension | Test Norm |
|
Flammability, 1.5 mm |
V-2 |
class |
UL 94 |
|
Glow Wire 960°C 2mm (GWFI) |
passed |
- |
DIN EN 60695 |
